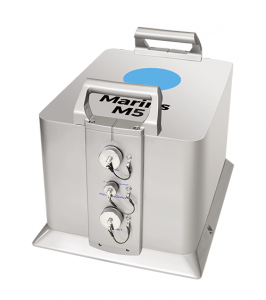

MARINS SERIES



Very high-performance inertial navigation system

MARINS M-Series is:

  • state-of-the-art naval inertial navigation systems, designed to meet the demands of the navy for the highest performance INS
  • enables stealth autonomous navigation for submarines, providing very accurate heading, roll, pitch, speed and position
  • uniquely adresse the need for advanced naval surface vessels, operating under severe GNSS-denied environment
  • includes three performance grades and is based on the iXBlue FOG technology, proven for superior reliability and performance
  • are chosen by world leading navies



FEATURES

  • High-performance sensors
  • Fiber-Optic Gyroscope (FOG)
  • Unique strap-down technology
  • High baud rate / low latency
  • Web-based built-in interface
  • Milspec approved standard / IMO
  • Option for ITAR-free component

PERFORMANCES

  M3 M5 M7

Position accuracy

(pure inertial, no aiding sensor)
1 nm / 12 hr 1 nm / 24 hr 1 nm / 72 hr

Velocity (RMS)

no aiding
0,6 knot 0,6 knot 0,4 knot

Heading accuracy

(RMS) Log aided
0,01 deg seclat 0,01 deg seclat 0,01 deg seclat

Roll and pitch accuracy (RMS)

no aiding
0,01 deg 0,01 deg 0,01 deg
Qualification MIL STD 801 E / MIL STD 461 / IMO MIL STD 801 E / MIL STD 461 / IMO MIL STD 801 E / MIL STD 461 / IMO
Mean time between failures (MTBF) 100,000 hours 100,000 hours 100,000 hours
